Торцевое уплотнение 32mm 502 D GGR1S1. John Crane Арт. 87301194
Описание Торцевое уплотнение 32mm 502 D GGR1S1. John Crane Арт. 87301194
-
Тип седла: D
-
Материал сильфона:этиленпропилен
-
Пара трения:графит-карбид кремния
-
Металлические части:сталь 316-хастеллой С-276
-
Температура минимальная для API:-40
-
Температура максимальная для API:205
-
Давление изб максимальное для API:40
-
Частота вращения вала максимальная для API:13
-
Диаметр вала:32 мм
-
Давление изб.:до 40 бар
-
Давление гидростатическое:до 70 бар
-
Температура:от -40 до +150 С

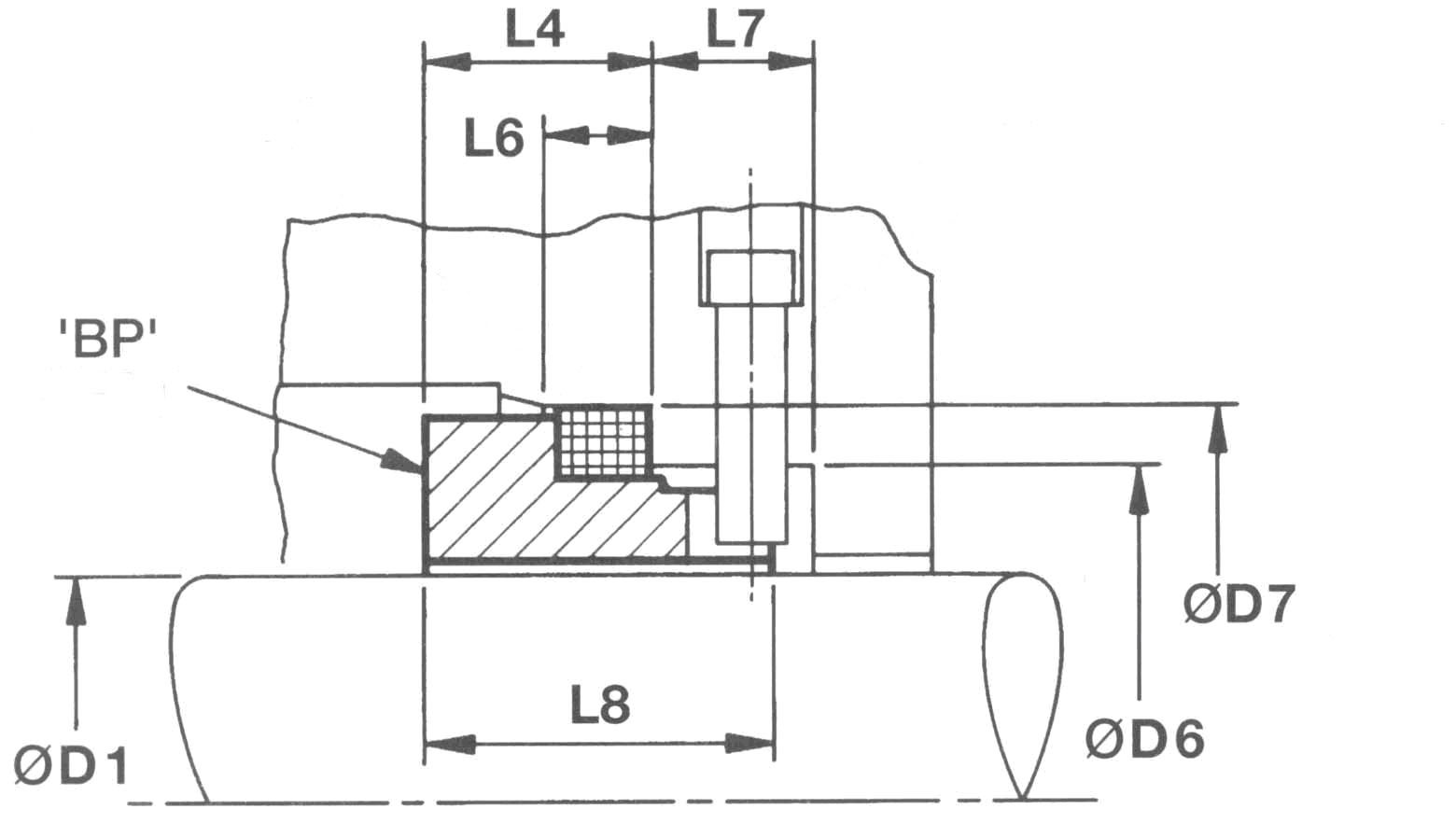

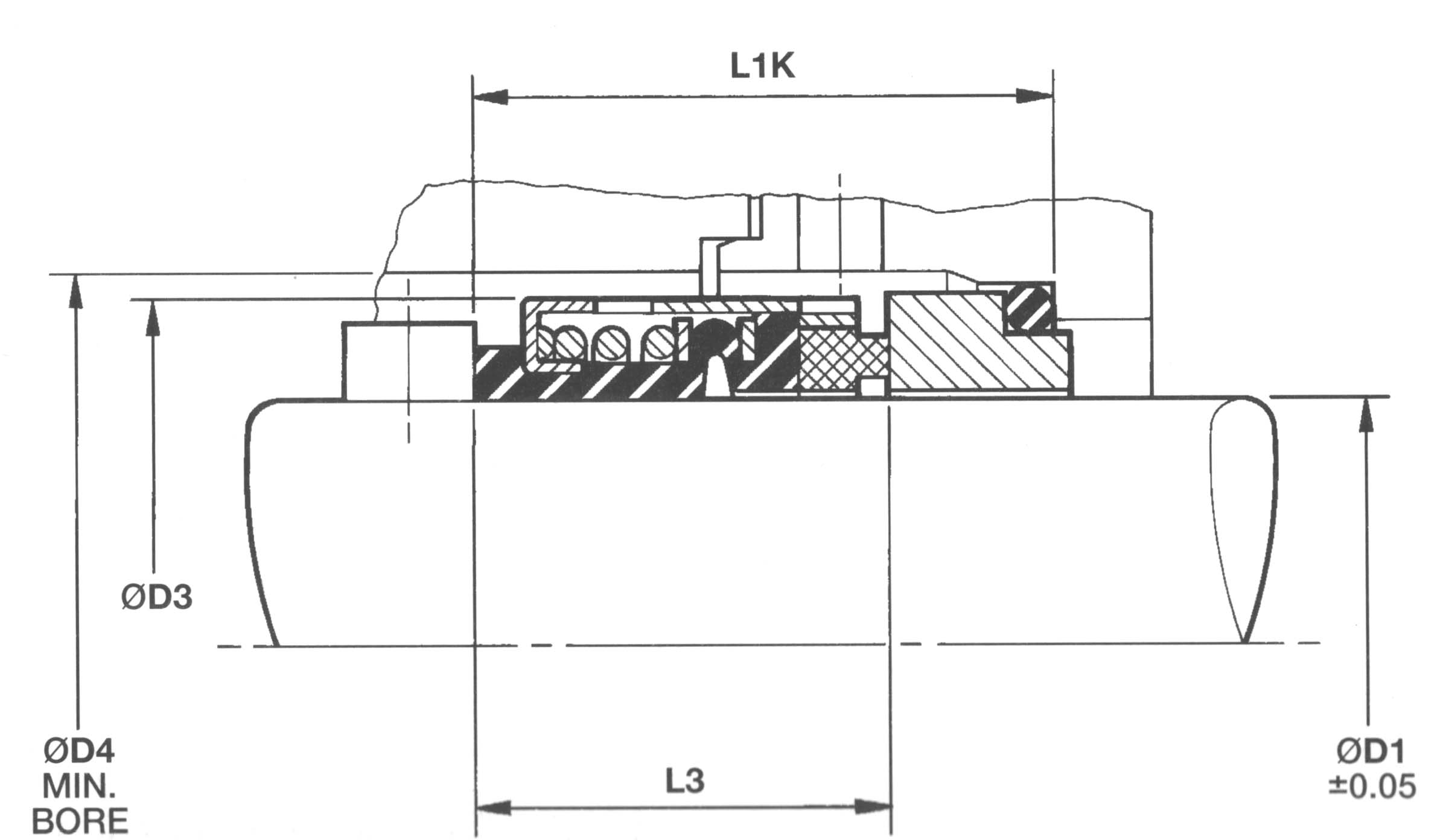

Установочные размеры уплотнения (размеры в мм)
 |
 |
 |
| Размеры вращающейся части, мм | Седло типа "BO", мм | Седло типа "BP" |
|
ВалD1 ±0,05 |
D3 |
D4 |
L1K |
L3 |
D6 |
D7 |
L4 |
L6 |
L7 |
L8 для ВО |
L8 для ВР |
|
14 |
24 |
26 |
35,0 |
23,0 |
21 |
25 |
12,0 |
4 |
8,5 |
12,8 |
18,5 |
|
16 |
26 |
28 |
35,0 |
23,0 |
23 |
27 |
12,0 |
4 |
8,5 |
12,8 |
18,5 |
|
18 |
32 |
34 |
37,5 |
24,0 |
27 |
33 |
13,5 |
5 |
9,0 |
14,5 |
20,5 |
|
20 |
34 |
36 |
37,5 |
24,0 |
29 |
35 |
13,5 |
5 |
9,0 |
14,5 |
20,5 |
|
22 |
36 |
38 |
37,5 |
24,0 |
31 |
37 |
13,5 |
5 |
9,0 |
14,5 |
20,5 |
|
24 |
38 |
40 |
40,0 |
26,7 |
33 |
39 |
13,3 |
5 |
9,0 |
14,3 |
20,3 |
|
25 |
39 |
41 |
40,0 |
27,0 |
34 |
40 |
13,0 |
5 |
9,0 |
14,0 |
20,0 |
|
28 |
42 |
44 |
42,5 |
30,0 |
37 |
43 |
12,5 |
5 |
9,0 |
13,5 |
19,5 |
|
30 |
44 |
46 |
42,5 |
30,5 |
39 |
45 |
12,0 |
5 |
9,0 |
13,0 |
19,0 |
|
32 |
46 |
48 |
42,5 |
30,5 |
42 |
48 |
12,0 |
5 |
9,0 |
13,0 |
19,0 |
|
33 |
47 |
49 |
42,5 |
30,5 |
42 |
48 |
12,0 |
5 |
9,0 |
13,0 |
19,0 |
|
35 |
49 |
51 |
42,5 |
30,5 |
44 |
50 |
12,0 |
5 |
9,0 |
13,0 |
19,0 |
|
38 |
54 |
58 |
45,0 |
32,0 |
49 |
56 |
13,0 |
6 |
9,0 |
14,0 |
20,0 |
|
40 |
56 |
60 |
45,0 |
32,0 |
51 |
58 |
13,0 |
6 |
9,0 |
14,0 |
20,0 |
|
43 |
59 |
63 |
45,0 |
32,0 |
54 |
61 |
13,0 |
6 |
9,0 |
14,0 |
20,0 |
|
45 |
61 |
65 |
45,0 |
32,0 |
56 |
63 |
13,0 |
6 |
9,0 |
14,0 |
20,0 |
|
48 |
64 |
68 |
45,0 |
32,0 |
59 |
66 |
13,0 |
6 |
9,0 |
14,0 |
20,0 |
|
50 |
66 |
70 |
47,5 |
34,0 |
62 |
70 |
13,5 |
6 |
9,0 |
14,5 |
20,5 |
|
53 |
69 |
73 |
47,5 |
34,0 |
65 |
73 |
13,5 |
6 |
9,0 |
14,5 |
20,5 |
|
55 |
71 |
75 |
47,5 |
34,0 |
67 |
75 |
13,5 |
6 |
9,0 |
14,5 |
20,5 |
|
58 |
78 |
83 |
52,5 |
39,0 |
70 |
78 |
13,5 |
6 |
9,0 |
14,2 |
20,5 |
|
60 |
80 |
85 |
52,5 |
39,0 |
72 |
80 |
13,5 |
6 |
9,0 |
14,2 |
20,5 |
|
63 |
83 |
88 |
52,5 |
39,0 |
75 |
83 |
13,5 |
6 |
9,0 |
14,2 |
20,5 |
|
65 |
85 |
90 |
52,5 |
39,0 |
77 |
85 |
13,5 |
6 |
9,0 |
14,2 |
20,5 |
|
68 |
88 |
93 |
52,5 |
39,0 |
81 |
90 |
13,5 |
7 |
9,0 |
14,2 |
20,5 |
|
70 |
89 |
95 |
60,0 |
45,5 |
83 |
92 |
14,5 |
7 |
9,0 |
15,2 |
21,5 |
|
75 |
96 |
104 |
60,0 |
45,5 |
88 |
97 |
14,5 |
7 |
9,0 |
15,2 |
21,5 |
|
80 |
104 |
109 |
60,0 |
45,5 |
95 |
105 |
15,0 |
7 |
9,0 |
15,7 |
22,0 |
|
85 |
108 |
114 |
60,0 |
45,5 |
100 |
110 |
15,0 |
7 |
9,0 |
15,7 |
22,0 |
|
90 |
114 |
119 |
65,0 |
50,0 |
105 |
115 |
15,0 |
7 |
9,0 |
15,7 |
22,0 |
|
95 |
118 |
124 |
65,0 |
50,0 |
110 |
120 |
15,0 |
7 |
9,0 |
15,7 |
22,0 |
|
100 |
124 |
129 |
65,0 |
50,0 |
115 |
125 |
15,0 |
7 |
9,0 |
15,7 |
22,0 |
