Описание

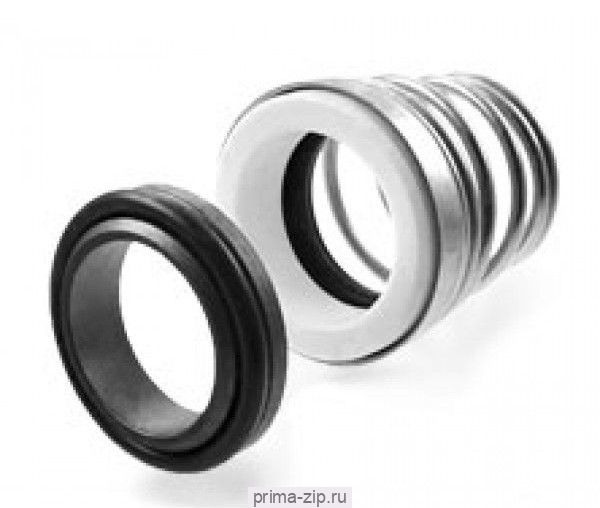

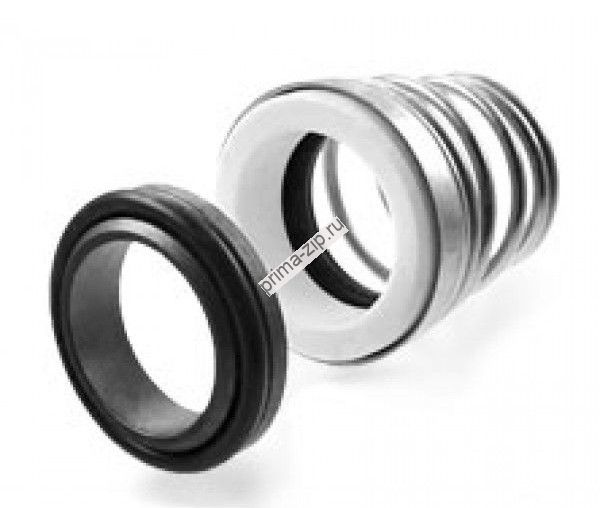

Одинарное уплотнение с конической пружиной для гладких валов. Зависит от направления вращения. Используется в насосах Calpeda, Ebara, Pedrollo и др.
Возможно применение в насосах: Lowara (CEA120), Calpeda (NM, MXH, MPC, GXC/GXV), Ebara (CDX, 2CDX, CDXM), Pedrolo (F) и многих других.
Аналог торцевых уплотнений: Burgmann BTFN, Roten 3, Vulcan 13. DIMER TCO.15-7, Lidering М112К.FR.
Характеристики:
- Диаметр вала: 10 - 40 мм
- Давление: до 10 бар
- Температура: -20 °С - + 140 °С (в зависимости от материалов)
- Скорость скольжения: 20 м/с
Торцевое уплотнение BT-FN.NU , размеры
| d1 (H6) | d3 (Max) | d6 (h8) | d7 (±0.5) | L3 | L4 (h8) |
| 10 | 20,0 | 17,0 | 21,0 | 15,0 | 7,0 |
| 12 | 22,0 | 19,0 | 23,0 | 18,0 | 7,0 |
| 14 | 25,0 | 21,0 | 25,0 | 22,0 | 7,0 |
| 16 | 29,0 | 23,0 | 27,0 | 23,0 | 7,0 |
| 18 | 33,0 | 27,0 | 33,0 | 24,0 | 10,0 |
| 20 | 33,0 | 29,0 | 35,0 | 25,0 | 10,0 |
| 22 | 38,0 | 31,0 | 37,0 | 25,0 | 10,0 |
| 24 | 38,0 | 33,0 | 39,0 | 27,0 | 10,0 |
| 25 | 40,0 | 34,0 | 40,0 | 27,0 | 10,0 |
| 28 | 46,0 | 37,0 | 43,0 | 29,0 | 10,0 |
| 30 | 46,0 | 39,0 | 45,0 | 30,0 | 10,0 |
| 32 | 46,0 | 42,0 | 48,0 | 30,0 | 10,0 |
| 33 | 48,0 | 42,0 | 48,0 | 39,0 | 10,0 |
| 35 | 50,0 | 44,0 | 50,0 | 39,0 | 10,0 |
| 38 | 58,0 | 49,0 | 56,0 | 42,0 | 13,0 |
| 40 | 58,0 | 51,0 | 58,0 | 42,0 | 13,0 |
Торцовые уплотнения BT-FN, размеры
| d1 (H6) | d3 (Max) | d6 (h8) | d7 (±0.5) | L3 | L4 (h8) |
| 10 | 20,0 | 14,0 | 18,1 | 15,0 | 5,5 |
| 11 | 22,0 | 16,5 | 20,6 | 18,0 | 5,5 |
| 12 | 22,0 | 16,5 | 20,6 | 18,0 | 5,5 |
| 13 | 25,0 | 18,5 | 23,1 | 22,0 | 6,0 |
| 14 | 25,0 | 18,5 | 23,1 | 22,0 | 6,0 |
| 15 | 29,0 | 21,5 | 26,9 | 23,0 | 7,0 |
| 16 | 29,0 | 21,5 | 26,9 | 23,0 | 7,0 |
| 17 | 29,0 | 21,5 | 26,9 | 23,0 | 7,0 |
| 18 | 33,0 | 24,5 | 30,9 | 24,0 | 8,0 |
| 19 | 33,0 | 26,0 | 30,9 | 25,0 | 8,0 |
| 20 | 33,0 | 26,0 | 30,9 | 25,0 | 8,0 |
| 21 | 38,0 | 29,0 | 35,4 | 25,0 | 8,0 |
| 22 | 38,0 | 29,0 | 35,4 | 25,0 | 8,0 |
| 23 | 38,0 | 29,0 | 35,4 | 27,0 | 8,0 |
| 24 | 38,0 | 29,0 | 35,4 | 27,0 | 8,0 |
| 25 | 40,0 | 31,5 | 38,2 | 27,0 | 8,5 |
| 28 | 46,0 | 37,5 | 43,3 | 30,0 | 9,0 |
| 29 | 46,0 | 37,5 | 43,3 | 30,0 | 9,0 |
| 30 | 46,0 | 37,5 | 43,3 | 30,0 | 9,0 |
| 32 | 46,0 | 37,5 | 43,3 | 30,0 | 9,0 |
| 33 | 48,0 | 45,0 | 53,5 | 39,0 | 11,5 |
| 35 | 50,0 | 45,0 | 53,5 | 39,0 | 11,5 |
| 38 | 58,0 | 52,0 | 60,5 | 39,0 | 11,5 |
| 40 | 58,0 | 52,0 | 60,5 | 39,0 | 11,5 |
