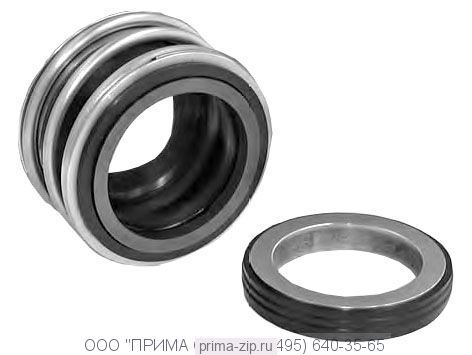

Торцевое уплотнение MG1/16-z
Описание Торцевое уплотнение MG1/16-z
Торцевое уплотнение Серии MG1
Применяется в насосах:
Alfa Laval ALC; Ebara 3M, Lowara, KSB Etanorm, Etachrom; WILO MVI, IPL, DPL, MHI; Grundfos CDM, NK, NB, NPB; Calpeda GM, MXS; Иртыш; ЦМЛ; и т. д.
Аналог торцевых уплотнений: Burgmann MG1, AESSEAL B02, Flowserve Pac-Seal 190, ROTEN L3, Vulcan Type 19, ANGA A1, Sterling SMG1, KROMA NM-1, SNMG-1, BSMG-1, Герметика 212.N2.
Перекачиваемые среды
- Вода питьевая
- Вода техническая
- Бензин, масла, диз. топливо и т.п.
- Пищевые среды (молоко, соки и т.п.
Возможные варианты ответных колец торцевого уплотнения MG1
Установочные размеры торцового уплотнения (DIN 24960, ISO3069)
|
Наименование |
d, мм |
D, мм |
D1, мм |
D2, мм |
D3, мм |
L1, мм |
L2, мм |
L3, мм |
L4, мм |
L5, мм |
L6, мм |
L7, мм |
L8, мм |
|
MG1-10 |
10 |
22.0 |
21 |
19.2 |
24.6 |
6.5 |
6.5 |
9.0 |
10.0 |
14.5 |
25.5 |
26.0 |
33.5 |
|
MG1-12 |
12 |
24.5 |
23 |
21.6 |
27.8 |
6.5 |
5.5 |
9.0 |
10.0 |
15.0 |
25.5 |
26.0 |
33.5 |
|
MG1-14 |
14 |
28.0 |
25 |
24.6 |
30.95 |
6.5 |
5.5 |
10.5 |
10.0 |
17.0 |
25.5 |
28.5 |
33.5 |
|
MG1-15 |
15 |
28.0 |
27 |
24.6 |
30.95 |
6.5 |
6.5 |
10.5 |
10.0 |
17.0 |
25.5 |
28.5 |
33.5 |
|
MG1-16 |
16 |
28.0 |
27 |
28.0 |
30.95 |
6.5 |
7.5 |
10.5 |
10.0 |
17.0 |
25.5 |
28.5 |
33.5 |
|
MG1-18 |
18 |
31.5 |
33 |
30.0 |
34.15 |
7.5 |
8.0 |
10.5 |
11.5 |
19.5 |
25.5 |
30.0 |
37.5 |
|
MG1-19 |
19 |
36.5 |
35 |
35.0 |
34.15 |
7.5 |
7.5 |
10.5 |
11.5 |
21.5 |
25.5 |
30.0 |
37.5 |
|
MG1-20 |
20 |
36.5 |
35 |
35.0 |
35.7 |
7.5 |
7.5 |
10.5 |
11.5 |
21.5 |
25.5 |
30.0 |
37.5 |
|
MG1-22 |
22 |
36.5 |
37 |
35.0 |
37.3 |
7.5 |
7.5 |
10.5 |
11.5 |
21.5 |
25.5 |
30.0 |
37.5 |
|
MG1-24 |
24 |
42.0 |
39 |
38.0 |
40.5 |
7.5 |
7.5 |
10.5 |
11.5 |
22.5 |
25.5 |
32.5 |
42.5 |
|
MG1-25 |
25 |
42.0 |
40 |
38.0 |
40.5 |
7.5 |
7.5 |
10.5 |
11.5 |
23.0 |
25.5 |
32.5 |
42.5 |
|
MG1-28 |
28 |
48.5 |
43 |
42.0 |
46.65 |
7.5 |
9.0 |
12.0 |
11.5 |
26.5 |
33.5 |
35.0 |
42.5 |
|
MG1-30 |
30 |
48.5 |
45 |
45.0 |
50.8 |
7.5 |
10.5 |
12.0 |
11.5 |
26.5 |
33.5 |
35.0 |
42.5 |
|
MG1-32 |
32 |
53.0 |
48 |
48.0 |
50.8 |
7.5 |
10.5 |
12.0 |
11.5 |
27.5 |
33.5 |
35.0 |
47.5 |
|
MG1-33 |
33 |
53.0 |
48 |
50.0 |
54.0 |
7.5 |
11.0 |
12.0 |
11.5 |
27.5 |
33.5 |
35.0 |
47.5 |
|
MG1-35 |
35 |
56.5 |
50 |
52.0 |
54.0 |
7.5 |
11.0 |
12.0 |
11.5 |
28.5 |
33.5 |
35.0 |
47.5 |
|
MG1-38 |
38 |
58.5 |
56 |
55.0 |
57.15 |
9.0 |
10.5 |
12.0 |
14.0 |
30.0 |
33.5 |
36.0 |
46.0 |
|
MG1-40 |
40 |
61.5 |
58 |
58.0 |
60.35 |
9.0 |
11.0 |
12.0 |
14.0 |
30.0 |
33.5 |
36.0 |
46.0 |
|
MG1-42 |
42 |
65.0 |
61 |
62.0 |
63.5 |
9.0 |
12.0 |
12.0 |
14.0 |
30.0 |
41.5 |
36.0 |
51.0 |
|
MG1-43 |
43 |
65.0 |
61 |
62.0 |
63.5 |
9.0 |
12.0 |
12.0 |
14.0 |
30.0 |
41.5 |
36.0 |
51.0 |
|
MG1-45 |
45 |
67.5 |
63 |
64.0 |
63.5 |
9.0 |
11.5 |
12.0 |
14.0 |
30.0 |
41.5 |
36.0 |
51.0 |
|
MG1-48 |
48 |
70.0 |
66 |
68.4 |
66.7 |
9.0 |
11.5 |
12.0 |
14.0 |
30.5 |
41.5 |
36.0 |
51.0 |
|
MG1-50 |
50 |
73.5 |
70 |
69.3 |
69.85 |
9.5 |
11.5 |
13.5 |
15.0 |
30.5 |
41.5 |
38.0 |
50.5 |
|
MG1-53 |
53 |
78.0 |
73 |
72.3 |
73.05 |
11.0 |
12.5 |
13.5 |
15.0 |
33.0 |
41.5 |
36.5 |
59.0 |
|
MG1-55 |
55 |
80.5 |
75 |
75.4 |
76.2 |
11.0 |
13.5 |
13.5 |
15.0 |
35.0 |
41.5 |
36.5 |
59.0 |
|
MG1-58 |
58 |
85.0 |
78 |
78.4 |
79.4 |
11.0 |
13.5 |
13.5 |
15.0 |
37.0 |
41.5 |
41.5 |
59.0 |
|
MG1-60 |
60 |
88.0 |
80 |
80.4 |
79.4 |
11.0 |
13.5 |
13.5 |
15.0 |
38.0 |
41.5 |
41.5 |
59.0 |
|
MG1-65 |
65 |
93.0 |
85 |
85.4 |
92.1 |
11.0 |
13.0 |
16.0 |
15.0 |
40.0 |
49.5 |
41.5 |
69.0 |
|
MG1-68 |
68 |
96.0 |
90 |
91.5 |
95.25 |
11.5 |
13.5 |
16.0 |
18.0 |
40.0 |
49.5 |
41.5 |
69.0 |
|
MG1-70 |
70 |
99.0 |
92 |
92.0 |
95.25 |
11.5 |
13.0 |
16.0 |
18.0 |
40.0 |
49.5 |
49.0 |
69.0 |
|
MG1-75 |
75 |
106.5 |
97 |
99.0 |
101.6 |
11.5 |
14.0 |
16.0 |
18.0 |
40.0 |
52.5 |
49.0 |
69.0 |
|
MG1-80 |
80 |
111.5 |
105 |
104.0 |
114.3 |
12.0 |
15.0 |
20.0 |
18.5 |
40.0 |
56.5 |
48.0 |
78.0 |
|
MG1-85 |
85 |
119.5 |
110 |
109.0 |
117.5 |
14.0 |
15.0 |
20.0 |
18.5 |
41.0 |
56.5 |
46.0 |
76.0 |
|
MG1-90 |
90 |
126.5 |
115 |
114.0 |
123.85 |
14.0 |
15.0 |
20.0 |
18.5 |
45.0 |
59.5 |
51.0 |
76.0 |
|
MG1-95 |
95 |
131.5 |
120 |
120.3 |
127.0 |
14.0 |
16.0 |
20.0 |
17.5 |
46.0 |
59.5 |
51.0 |
76.0 |
|
MG1-100 |
100 |
136.5 |
125 |
123.3 |
133.35 |
14.0 |
16.0 |
20.0 |
17.5 |
47.0 |
62.5 |
51.0 |
76.0 |
