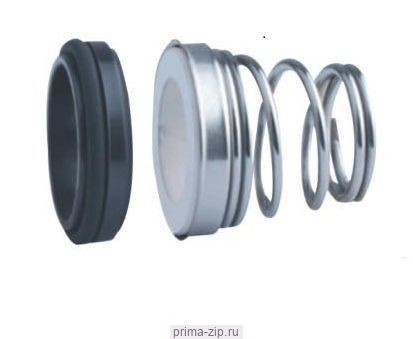

Торцевое уплотнение BT-FN.NU 14 мм
Описание Торцевое уплотнение BT-FN.NU 14 мм
Диаметр вала: 14 мм
Температура, °С: от -20 до +200
Давление, МПа: 0.8
Тип: с конической пружиной
Температура, °С: от -20 до +200
Давление, МПа: 0.8
Тип: с конической пружиной
| d1 (H6) | d3 (Max) | d6 (h8) | d7 (±0.5) | L3 | L4 (h8) |
| 10 | 20,0 | 17,0 | 21,0 | 15,0 | 7,0 |
| 12 | 22,0 | 19,0 | 23,0 | 18,0 | 7,0 |
| 14 | 25,0 | 21,0 | 25,0 | 22,0 | 7,0 |
| 16 | 29,0 | 23,0 | 27,0 | 23,0 | 7,0 |
| 18 | 33,0 | 27,0 | 33,0 | 24,0 | 10,0 |
| 20 | 33,0 | 29,0 | 35,0 | 25,0 | 10,0 |
| 22 | 38,0 | 31,0 | 37,0 | 25,0 | 10,0 |
| 24 | 38,0 | 33,0 | 39,0 | 27,0 | 10,0 |
| 25 | 40,0 | 34,0 | 40,0 | 27,0 | 10,0 |
| 28 | 46,0 | 37,0 | 43,0 | 29,0 | 10,0 |
| 30 | 46,0 | 39,0 | 45,0 | 30,0 | 10,0 |
| 32 | 46,0 | 42,0 | 48,0 | 30,0 | 10,0 |
| 33 | 48,0 | 42,0 | 48,0 | 39,0 | 10,0 |
| 35 | 50,0 | 44,0 | 50,0 | 39,0 | 10,0 |
| 38 | 58,0 | 49,0 | 56,0 | 42,0 | 13,0 |
| 40 | 58,0 | 51,0 | 58,0 | 42,0 | 13,0 |
Торцевое уплотнение BT-FN.NU 14
