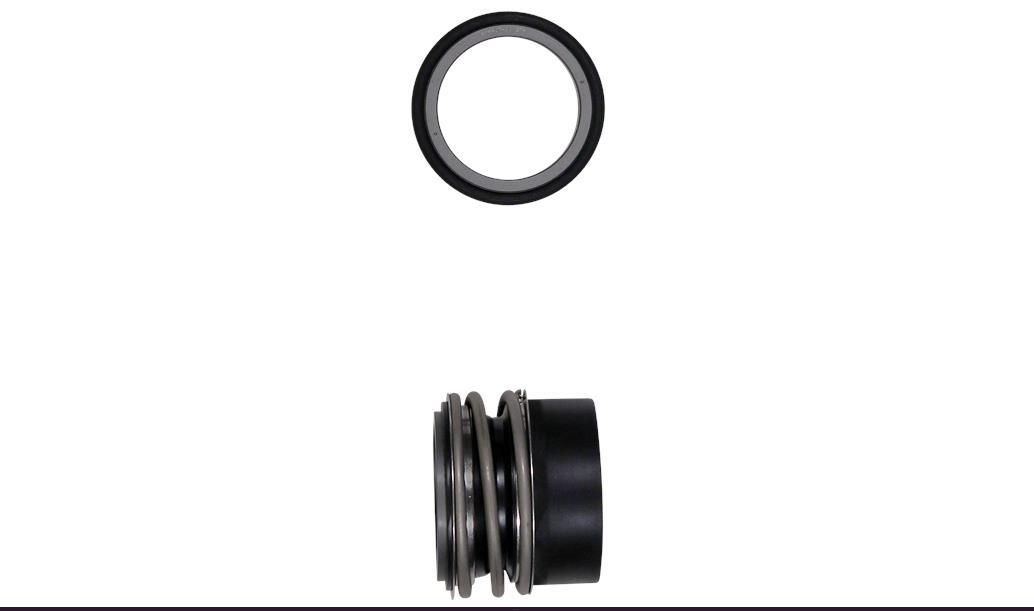

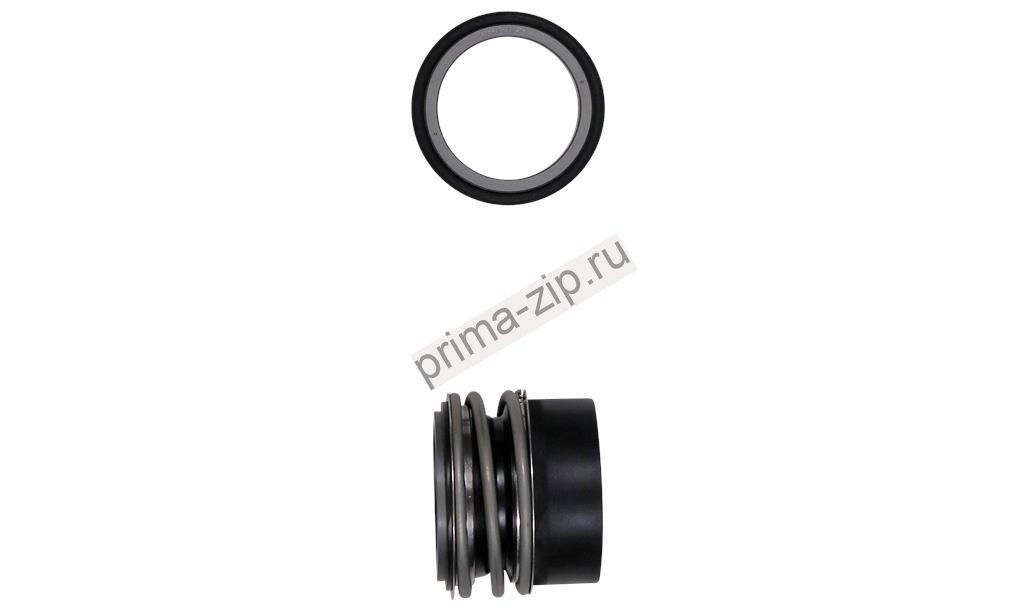

Торцевое уплотнение GRUNDFOS NSGLF-6, d 38 мм, BAQE
7 888 руб.
Уточняйте наличие
ВНИМАНИЕ! Мы работаем с физическими и юридическими лицами!
Как получить товар:
- 1Доставка ТК "Деловые Линии".
- 2Доставка ТК "СДЭК" .
- 3Другой вариант доставки .
Сильфонное механическое торцевое уплотнение для насосов GRUNDFOS серий TP,NB и NK с диаметром вала 38 мм.
1. Условия эксплуатации:
Температура: -20 ℃ до +120 ℃
Давление: ≤ 1.2MPa
Скорость: ≤ 10м / с
2. Материалы:
Неподвижная часть: Ni-связующее карбид вольфрама, карбид кремния, керамика (глинозем), карбид кремния спеченный без давления
Вращающаяся часть: пропитанный феноловой смолой (фуран). Графит, карбид кремния спеченный без давления, карбид кремния.
Вторичное уплотнение: Фторкаучук (витон), нитрил (NBR), этилен-пропилен (EPDM)
Металлические части: нержавеющая сталь.
3. Размер вала 38 мм.
| Диаметр вала | d | D3 | D2 | D1 | L1 | L11 | L12 | L13 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| 10,0 | 10,0 | 22,5 | 17,0 | 21,0 | 14,5 | 25,9 | 33,4 | 25,0 | 6,6 |
| 12,0 | 12,0 | 25,0 | 19,0 | 23,0 | 15,0 | 25,9 | 33,4 | 25,0 | 6,6 |
| 14,0 | 14,0 | 28,5 | 21,0 | 25,0 | 17,0 | 28,4 | 33,4 | 25,0 | 6,6 |
| 15,0 | 15,0 | 28,5 | - | - | 17,0 | 28,4 | 33,4 | 25,0 | - |
| 16,0 | 16,0 | 28,5 | 23,0 | 27,0 | 17,0 | 28,4 | 33,4 | 25,0 | 6,6 |
| 18,0 | 18,0 | 32,0 | 27,0 | 33,0 | 19,5 | 30,0 | 37,5 | 25,0 | 7,5 |
| 19,0 | 19,0 | 37,0 | - | - | 21,5 | 30,0 | 37,5 | 25,0 | - |
| 20,0 | 20,0 | 37,0 | 29,0 | 35,0 | 21,5 | 30,0 | 37,5 | 25,0 | 7,5 |
| 22,0 | 22,0 | 37,0 | 31,0 | 37,0 | 21,5 | 30,0 | 37,5 | 25,0 | 7,5 |
| 24,0 | 24,0 | 42,5 | 33,0 | 39,0 | 22,5 | 32,5 | 42,5 | 25,0 | 7,5 |
| 25,0 | 25,0 | 42,5 | 34,0 | 40,0 | 23,0 | 32,5 | 42,5 | 25,0 | 7,5 |
| 28,0 | 28,0 | 49,0 | 37,0 | 43,0 | 26,5 | 35,0 | 42,5 | 33,0 | 7,5 |
| 30,0 | 30,0 | 49,0 | 39,0 | 45,0 | 26,5 | 35,0 | 42,5 | 33,0 | 7,5 |
| 32,0 | 32,0 | 53,5 | 42,0 | 48,0 | 27,5 | 35,0 | 47,5 | 33,0 | 7,5 |
| 33,0 | 33,0 | 53,5 | 42,0 | 48,0 | 27,5 | 35,0 | 47,5 | 33,0 | 7,5 |
| 35,0 | 35,0 | 57,0 | 44,0 | 50,0 | 28,5 | 35,0 | 47.5 | 33,0 | 7,5 |
| 38,0 | 38,0 | 59,0 | 49,0 | 56,0 | 30,0 | 36,0 | 46,0 | 33,0 | 9,0 |
| 40,0 | 40,0 | 62,0 | 51,0 | 58,0 | 30,0 | 36,0 | 46,0 | 33,0 | 9,0 |
| 42,0 | 42,0 | 65,5 | - | - | 30,0 | 36,0 | 51,0 | 41,0 | - |
| 43,0 | 43,0 | 65,5 | 54,0 | 61,0 | 30,0 | 36,0 | 51,0 | 41,0 | 9,0 |
| 45,0 | 45,0 | 68,0 | 56,0 | 63,0 | 30,0 | 36,0 | 51,0 | 41,0 | 9,0 |
| 48,0 | 48,0 | 70,5 | 59,0 | 66,0 | 30,5 | 36,0 | 51,0 | 41,0 | 9,0 |
| 50,0 | 50,0 | 74,0 | 62,0 | 70,0 | 30,5 | 38,0 | 50,5 | 41,0 | 9,5 |
| 53,0 | 53,0 | 78,5 | 65,0 | 73,0 | 33,0 | 36,5 | 59 | 41,0 | 11,0 |
| 55,0 | 55,0 | 81,0 | 67,0 | 75,0 | 35,0 | 36,5 | 59,0 | 41,0 | 11,0 |
| 58,0 | 58,0 | 85,5 | 70,0 | 78,0 | 37,0 | 41,5 | 50,0 | 41,0 | 11,0 |
| 60,0 | 60,0 | 88,5 | 72,0 | 80,0 | 38,0 | 41,5 | 50,0 | 41,0 | 11,0 |
| 65,0 | 65,0 | 93,5 | 77,0 | 85,0 | 40,0 | 41,5 | 69,0 | 49,0 | 11,0 |
| 68,0 | 68,0 | 96,5 | 81,0 | 90,0 | 40,0 | 41,2 | 68,7 | 49,0 | 11,3 |
| 70,0 | 70,0 | 99,5 | 83,0 | 92,0 | 40,0 | 48,7 | 68,7 | 49,0 | 11,3 |
| 75,0 | 75,0 | 107,0 | 88,0 | 97,0 | 40,0 | 48,7 | 68,7 | 52,0 | 11,3 |
| 80,0 | 80,0 | 112,0 | 95,0 | 105,0 | 40,0 | 48,0 | 78,0 | 56,0 | 12,0 |
| 85,0 | 85,0 | 120,0 | 100,0 | 110,0 | 41,0 | 46,0 | 76,0 | 56,0 | 14,0 |
| 90,0 | 90,0 | 127,0 | 105,0 | 115,0 | 45,0 | 51,0 | 76,0 | 59,0 | 14,0 |
| 95,0 | 95,0 | 132,0 | 110,0 | 120,0 | 46,0 | 51,0 | 76,0 | 59,0 | 14,0 |
| 100,0 | 100,0 | 137,0 | 115,0 | 125,0 | 47,0 | 51,0 | 76,0 | 62,0 | 14,0 |
Торцевое уплотнение GRUNDFOS NSGLF-6, d 38 мм, BAQE
