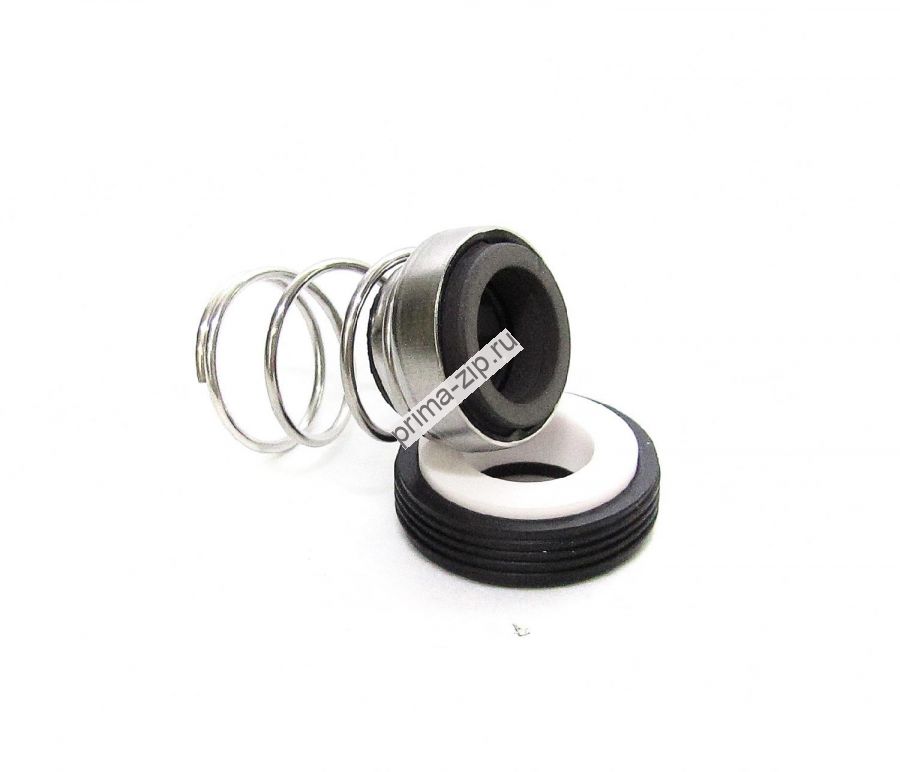

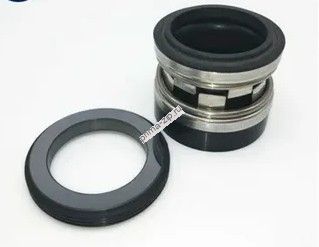

Торцевое уплотнение BS560A-38 мм

Model

D1

D3

D2

L1

L2

560A-10

10

23.5

24

25

7

560A-11

11

23.5

24

25

7

560A-12

12

26

26

25

7

560A-14

14

28

28

25.5

7

560A-15

15

30

28

29.5

7

560A-16

16

32

32

33.5

10

560A-18

18

32.5

35

36.5

10

560A-19

19

32.5

35

36.5

10

560A-20

20

35.5

38

38

10

560A-22

22

37.5

40

40.3

10

560A-25

25

42

44

39.3

10

560A-28

28

45.5

46

40

10

560A-30S

30

46

45

38.2

7.5

560A-30L

30

48

50

40

10

560A-32

32

50

54

40

10

560A-35

35

54.5

58

42

10

560A-38

38

58.5

60

42.6

10

560A-40

40

62.5

64

42.6

10

560A-45

45

66.5

66

45

10

560A-50

50

72.5

72

54.6

10

560A-55S

55

72

75

59.4

12

560A-55L

55

76

78

59.4

12

560A-60

60

80

80

63

12

560A-65

65

85

85

64

13

560A-70

70

92

92

60

11

560A-3/8*

9.525

23.5

22.225

28.6

6.4

560A-1/2*

12.7

26

25.4

28.6

6.4

560A-5/8*

15.875

30

31.75

32.5

8.7

560A-3/4*

19.05

32.5

34.925

32.5

8.7

560A-7/8*

22.225

37.5

38.1

34.1

8.7

560A-1*

25.4

44

41.275

36.5

9.5

560A-1 1/8*

28.575

48

44.45

38.1

9.5

560A-1 1/4*

31.75

50

47.625

38.1

9.5

560A-1 3/8*

34.925

54.5

50.8

39.7

9.5

560A-1 1/2*

38.1

58.5

53.975

39.7

9.5

560A-1 5/8*

41.275

64

60.325

47.6

11.1

560A-1 3/4*

44.45

67

63.5

47.6

11.1

560A-1 7/8*

47.625

71

66.675

50.8

11.1

560A-2*

50.8

73.5

69.85

50.8

11.1

560A-2 1/4*

57.15

78.4

79.38

57.16

13.5

560A-2 1/2*

63.5

84.9

85.73

60.3

13.5

560A-2 5/8*

66.785

88.4

85.73

65.1

15.9

560A-2 3/4*

69.85

92.6

88.9

65.1

15.9

560A-2 7/8*

73.025

94.9

95.25

68.27

15.9

560A-3*

76.2

101.9

98.43

68.27

15.9
