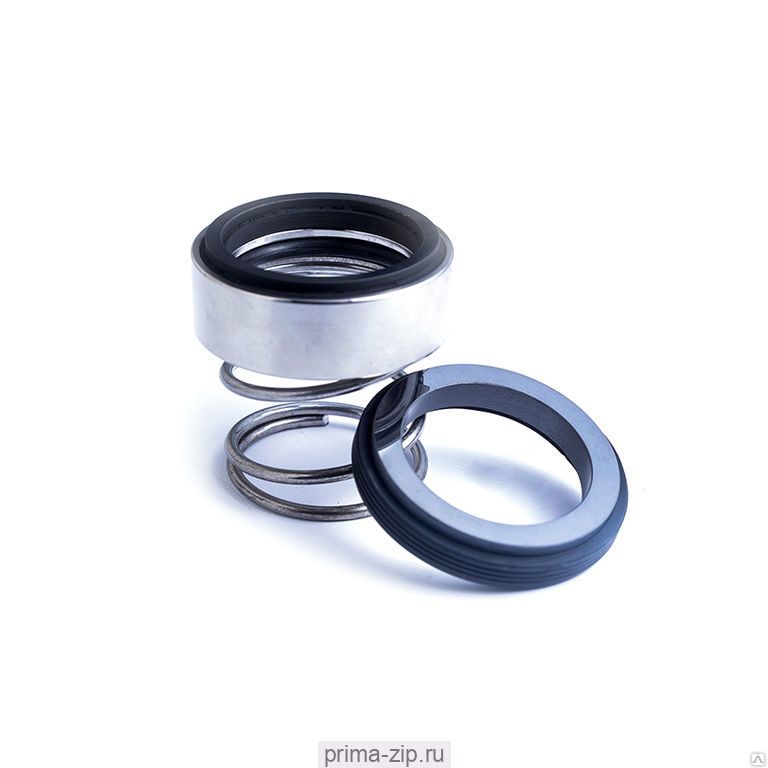

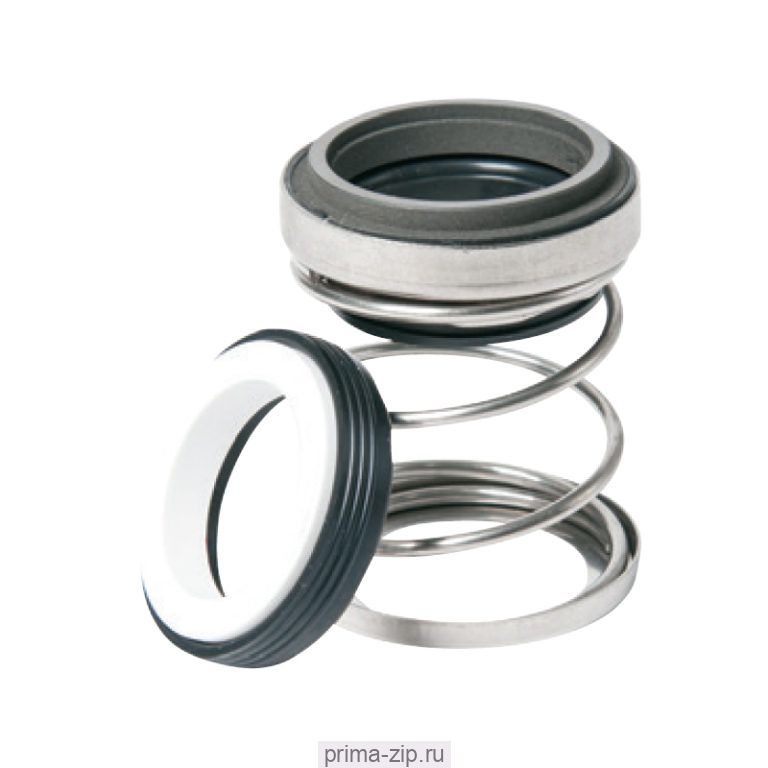

Торцевое уплотнение BS166T
Описание Торцевое уплотнение BS166T
 |
|
|
Технические характеристики: Температура от -30 °С .... +200 °С Давление до 10 бар Скорость вращения до 10 м/с |
Материал исполнения: Вращающаяся часть: Графит/ Карбид кремния/ Карбид вольфрама Неподвижное кольцо: Керамика/ Карбид кремния/ Карбид вольфрама Резиновые уплотнения: NBR/ EPDM/ Viton Корпус и пружина: AISI304/ AISI316L |
Дюймовые размеры
| Марка | d1 | d3 | d7 | L1 | L3 |
| BS166T-3/8" | 9.525 | 23.292 | 24.587 | 34.138 | 8.738 |
| BS166T-1/2" | 12.7 | 23.292 | 27.788 | 34.138 | 8.738 |
| BS166T-5/8" | 15.875 | 30.099 | 30.937 | 35.712 | 10.312 |
| BS166T-3/4" | 19.050 | 33.071 | 33.1/34.138 | 35.712 | 6.5/10.312 |
| BS166T-7/8" | 22.225 | 36.297 | 37.287 | 35.712 | 10.312 |
| BS166T-1" | 25.400 | 39.421 | 41.28/40.488 | 43.307 | 10.312 |
| BS166T-1 1/8" | 28.575 | 44.450 | 47.625 | 44.907 | 11.913 |
| BS166T-1 1/4" | 31.750 | 47.625 | 50.800 | 44.907 | 11.913 |
| BS166T-1 3/8" | 34.925 | 50.800 | 53.975 | 44.907 | 11.913 |
| BS166T-1 1/2" | 38.100 | 53.975 | 57.150 | 44.907 | 11.913 |
| BS166T-1 5/8" | 41.275 | 60.325 | 60.325 | 44.907 | 11.913 |
| BS166T-1 3/4" | 44.450 | 60.325 | 63.500 | 52.934 | 11.913 |
| BS166T-1 7/8" | 47.625 | 63.881 | 66.675 | 52.934 | 11.913 |
| BS166T-2" | 50.800 | 66.675 | 69.850 | 54.508 | 13.487 |
Метрические размеры
| Марка | d1 | d3 | d7 | L1 | L3 |
| BS166T-12 | 12 | 23.3 | 27.8 | 34.1 | 8.7 |
| BS166T-16 | 16 | 30.1 | 30.95 | 35.7 | 10.3 |
| BS166T-20 | 20 | 36.3 | 35.7 | 35.7 | 10.3 |
| BS166T-22 | 22 | 36.3 | 37.3 | 35.7 | 10.3 |
| BS166T-24 | 24 | 39.4 | 40.5 | 35.7 | 10.3 |
| BS166T-25 | 25 | 39.4 | 40.5 | 35.7 | 10.3 |
| BS166T-28 | 28 | 44.4 | 47.65 | 45.2 | 11.9 |
| BS166T-30 | 30 | 47.6 | 50.8 | 45.2 | 11.9 |
| BS166T-32 | 32 | 47.6 | 50.8 | 45.2 | 11.9 |
| BS166T-35 | 35 | 50.8 | 54 | 45.2 | 11.9 |
| BS166T-38 | 38 | 54 | 57.15 | 45.2 | 11.9 |
| BS166T-40 | 40 | 60.3 | 60.35 | 45.2 | 11.9 |
| BS166T-45 | 45 | 66.7 | 63.5 | 52.4 | 11.9 |
| BS166T-48 | 48 | 66.7 | 66.7 | 52.4 | 11.9 |
| BS166T-50 | 50 | 66.7 | 69.85 | 54 | 13.5 |
