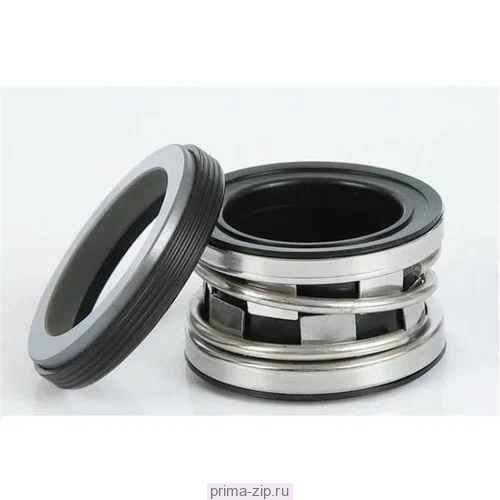

Торцевое уплотнение 45mm 2100S M AAS1S1
Описание Торцевое уплотнение 45mm 2100S M AAS1S1
-
Диаметр:45
-
Длина:30
-
Тип седла:M
-
Материал сильфона:вайтон
-
Металлические части:сталь 316-хастеллой С-276
-
Температура минимальная для API:-20
|
D1 |
D3 |
D4 |
L3 |
L3+ |
L3++ |
D6 |
D7 для M |
D7 для D |
D7 для N |
L4 для M |
L4 для N |
L6 |
|
10 |
20 |
22 |
15 |
27,5 |
35,0 |
17 |
21 |
|
|
5,0 |
|
4 |
|
12 |
22 |
24 |
15 |
26,5 |
34,0 |
19 |
23 |
22,6 |
27,8 |
6,0 |
8,7 |
4 |
|
14 |
24 |
26 |
15 |
29,0 |
34,0 |
21 |
25 |
|
|
6,0 |
|
4 |
|
15 |
25 |
27 |
15 |
29,0 |
34,0 |
22 |
26 |
|
30,95 |
6,0 |
10,3 |
4 |
|
15,8 |
26 |
28 |
15 |
29,0 |
34,0 |
18 |
|
|
30,95 |
10,3 |
10,3 |
8,7 |
|
16 |
26 |
28 |
15 |
29,0 |
34,0 |
23 |
27 |
|
30,95 |
6,0 |
10,3 |
4 |
|
18 |
32 |
34 |
20 |
31,5 |
39,0 |
27 |
33 |
30,5 |
34,15 |
6,0 |
10,3 |
5 |
|
19 |
32 |
34 |
20 |
|
|
22 |
|
|
34,15 |
10,3 |
10,3 |
8,7 |
|
20 |
34 |
36 |
20 |
31,5 |
39,0 |
29 |
35 |
|
35,7 |
6,0 |
10,3 |
5 |
|
22 |
36 |
38 |
20 |
31,5 |
39,0 |
31 |
37 |
|
37,3 |
6,0 |
10,3 |
5 |
|
24 |
38 |
40 |
20 |
34,0 |
44,0 |
33 |
39 |
|
40,5 |
6,0 |
10,3 |
5 |
|
25 |
39 |
41 |
20 |
34,0 |
44,0 |
34 |
40 |
|
40,5 |
6,0 |
10,3 |
5 |
|
25,4 |
39 |
41 |
20 |
|
|
28 |
|
|
40,5 |
10,3 |
10,3 |
8,7 |
|
28 |
42 |
44 |
26 |
36,5 |
44,0 |
37 |
43 |
|
47,65 |
6,0 |
11,9 |
5 |
|
28,5 |
42 |
44 |
26 |
|
|
32 |
|
|
47,65 |
11,9 |
11,9 |
10,3 |
|
30 |
44 |
46 |
26 |
35,5 |
43,0 |
39 |
45 |
|
50,8 |
7,0 |
11,9 |
5 |
|
31,7 |
46 |
48 |
26 |
|
|
35 |
|
|
50,8 |
11,9 |
11,9 |
10,3 |
|
32 |
46 |
48 |
26 |
35,5 |
48,0 |
42 |
48 |
46,4 |
50,8 |
7,0 |
11,9 |
5 |
|
33 |
47 |
49 |
26 |
35,5 |
48,0 |
42 |
48 |
|
|
7,0 |
|
5 |
|
35 |
49 |
51 |
26 |
34,5 |
47,0 |
44 |
50 |
|
54 |
8,0 |
11,9 |
5 |
|
38 |
54 |
58 |
30 |
37,0 |
47,0 |
49 |
56 |
|
57,15 |
8,0 |
11,9 |
6 |
|
40 |
56 |
60 |
30 |
37,0 |
47,0 |
51 |
58 |
|
60,35 |
8,0 |
11,9 |
6 |
|
43 |
59 |
63 |
30 |
37,0 |
52,0 |
54 |
61 |
|
63,50 |
8,0 |
11,9 |
6 |
|
45 |
61 |
65 |
30 |
37,0 |
52,0 |
56 |
63 |
|
63,50 |
8,0 |
11,9 |
6 |
|
48 |
64 |
68 |
30 |
35,0 |
50,0 |
59 |
66 |
|
66,70 |
10,0 |
11,9 |
6 |
|
50 |
66 |
70 |
30 |
37,5 |
50,0 |
62 |
70 |
|
69,85 |
10,0 |
13,5 |
6 |
|
53 |
69 |
73 |
30 |
37,5 |
60,0 |
65 |
73 |
|
|
10,0 |
|
6 |
|
55 |
71 |
75 |
30 |
37,5 |
60,0 |
67 |
75 |
|
76,20 |
10,0 |
13,5 |
6 |
|
58 |
78 |
83 |
33 |
42,5 |
60,0 |
70 |
78 |
|
|
10,0 |
|
6 |
|
60 |
80 |
85 |
33 |
40,5 |
58,0 |
72 |
80 |
|
79,40 |
12,0 |
13,5 |
6 |
|
63 |
83 |
88 |
33 |
40,5 |
58,0 |
75 |
83 |
|
|
12,0 |
|
6 |
|
65 |
85 |
90 |
33 |
40,5 |
68,0 |
77 |
85 |
|
92,05 |
12,0 |
15,9 |
6 |
|
68 |
88 |
93 |
33 |
40,5 |
68,0 |
81 |
90 |
|
|
12,0 |
|
7 |
|
70 |
90 |
95 |
33 |
48,0 |
68,0 |
83 |
92 |
|
95,25 |
12,0 |
15,9 |
7 |
|
75 |
99 |
104 |
40 |
48,0 |
68,0 |
88 |
97 |
|
101,60 |
12,0 |
15,9 |
7 |
|
80 |
104 |
109 |
40 |
47,5 |
77,5 |
95 |
105 |
|
114,30 |
12,5 |
19,9 |
7 |
|
85 |
109 |
114 |
40 |
47,5 |
77,5 |
100 |
110 |
|
117,48 |
12,5 |
19,9 |
7 |
|
90 |
114 |
119 |
40 |
52,5 |
77,5 |
105 |
115 |
|
|
12,5 |
|
7 |
|
95 |
119 |
124 |
40 |
52,5 |
77,5 |
110 |
120 |
|
127 |
12,5 |
19,9 |
7 |
|
100 |
124 |
129 |
40 |
52,5 |
77,5 |
115 |
125 |
|
133,35 |
12,5 |
19,9 |
7 |
*длина указана в поджатом рабочем состоянии
