Торцевое уплотнение к насосу AQUASTRONG EP2200
Описание Торцевое уплотнение к насосу AQUASTRONG EP2200

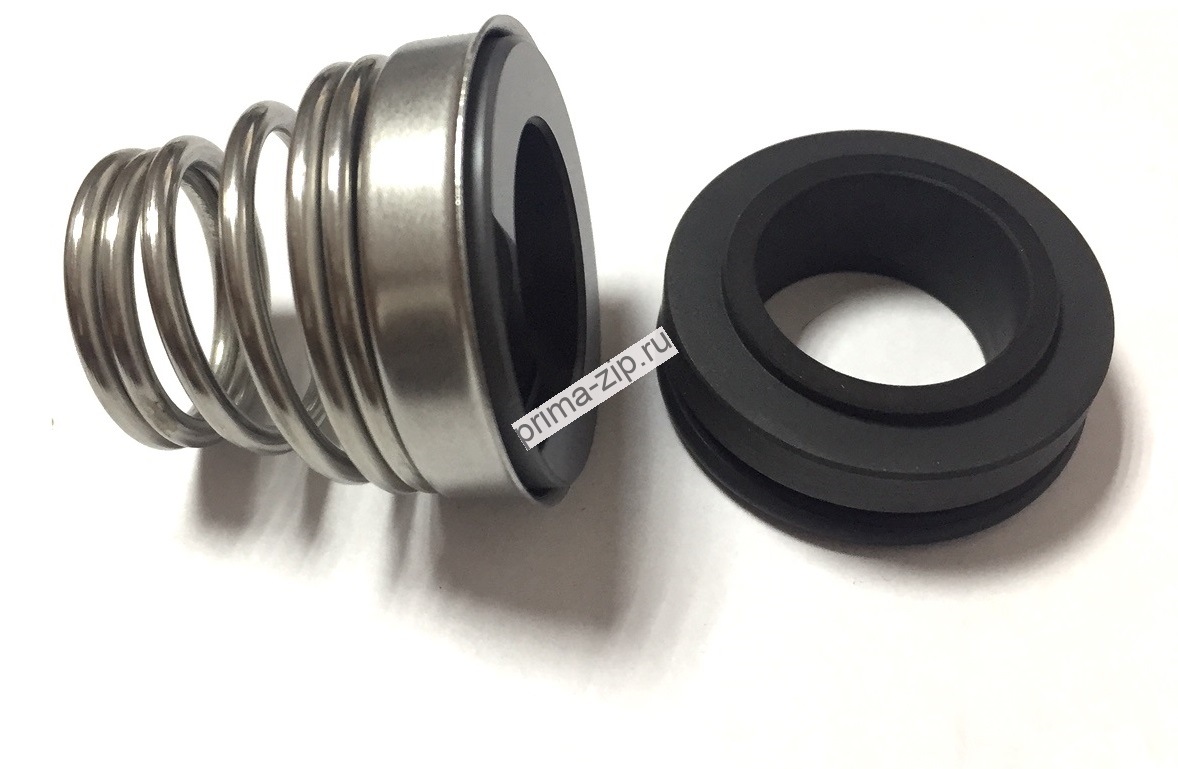

Торцевое уплотнение BT-FN -17 мм - (торцевое уплотнение с открытой пружиной) SIC/VITON
Установочные размеры уплотнения
|
d1 |
d3 |
d4 |
d6 |
d7 |
l1 |
l3 |
l4 |
l5 |
l6 |
|
10 |
19,9 |
22 |
14 |
18,1 |
20,5 |
15 |
5,5 |
1,2 |
3 |
|
11 |
22,5 |
25 |
16,5 |
20,6 |
23,5 |
18 |
5,5 |
1,2 |
3 |
|
12 |
22,5 |
25 |
16,5 |
20,6 |
23,5 |
18 |
5,5 |
1,2 |
3 |
|
13 |
24,5 |
28 |
19,0 |
23,1 |
28,0 |
22 |
6,0 |
1,2 |
3 |
|
14 |
24,5 |
28 |
19,0 |
23,1 |
28,0 |
22 |
6,0 |
1,2 |
3 |
|
15 |
29,0 |
32 |
21,0 |
26,9 |
29,0 |
22 |
7,0 |
1,5 |
4 |
|
16 |
29,0 |
32 |
21,0 |
26,9 |
30,0 |
23 |
7,0 |
1,5 |
4 |
|
17 |
29,0 |
32 |
21,0 |
26,9 |
30,0 |
23 |
7,0 |
1,5 |
4 |
|
18 |
32,5 |
36 |
25,0 |
30,9 |
32,0 |
24 |
8,0 |
1,5 |
4 |
|
19 |
32,5 |
36 |
25,0 |
30,9 |
33,0 |
25 |
8,0 |
1,5 |
4 |
|
20 |
32,5 |
36 |
25,0 |
30,9 |
33,0 |
25 |
8,0 |
1,5 |
4 |
|
22 |
37,5 |
42 |
30,0 |
35,4 |
33,0 |
25 |
8,0 |
2,0 |
4 |
|
24 |
37,5 |
42 |
30,0 |
35,4 |
35,0 |
27 |
8,0 |
2,0 |
4 |
|
25 |
40,0 |
45 |
33,0 |
38,2 |
35,5 |
27 |
8,5 |
2,0 |
4 |
|
28 |
46,0 |
51 |
38,0 |
43,3 |
38,0 |
29 |
9,0 |
2,0 |
4 |
|
30 |
46,0 |
51 |
38,0 |
43,3 |
39,0 |
30 |
9,0 |
2,0 |
4 |
|
32 |
46,0 |
51 |
38,0 |
43,3 |
39,0 |
30 |
9,0 |
2,0 |
4 |
|
35 |
50,0 |
55 |
45,0 |
53,5 |
50,5 |
39 |
11,5 |
2,0 |
6 |
|
38 |
58,0 |
68 |
52,0 |
60,5 |
50,5 |
39 |
11,5 |
2,0 |
6 |
|
40 |
58,0 |
68 |
52,0 |
60,5 |
50,5 |
39 |
11,5 |
2,0 |
6 |
