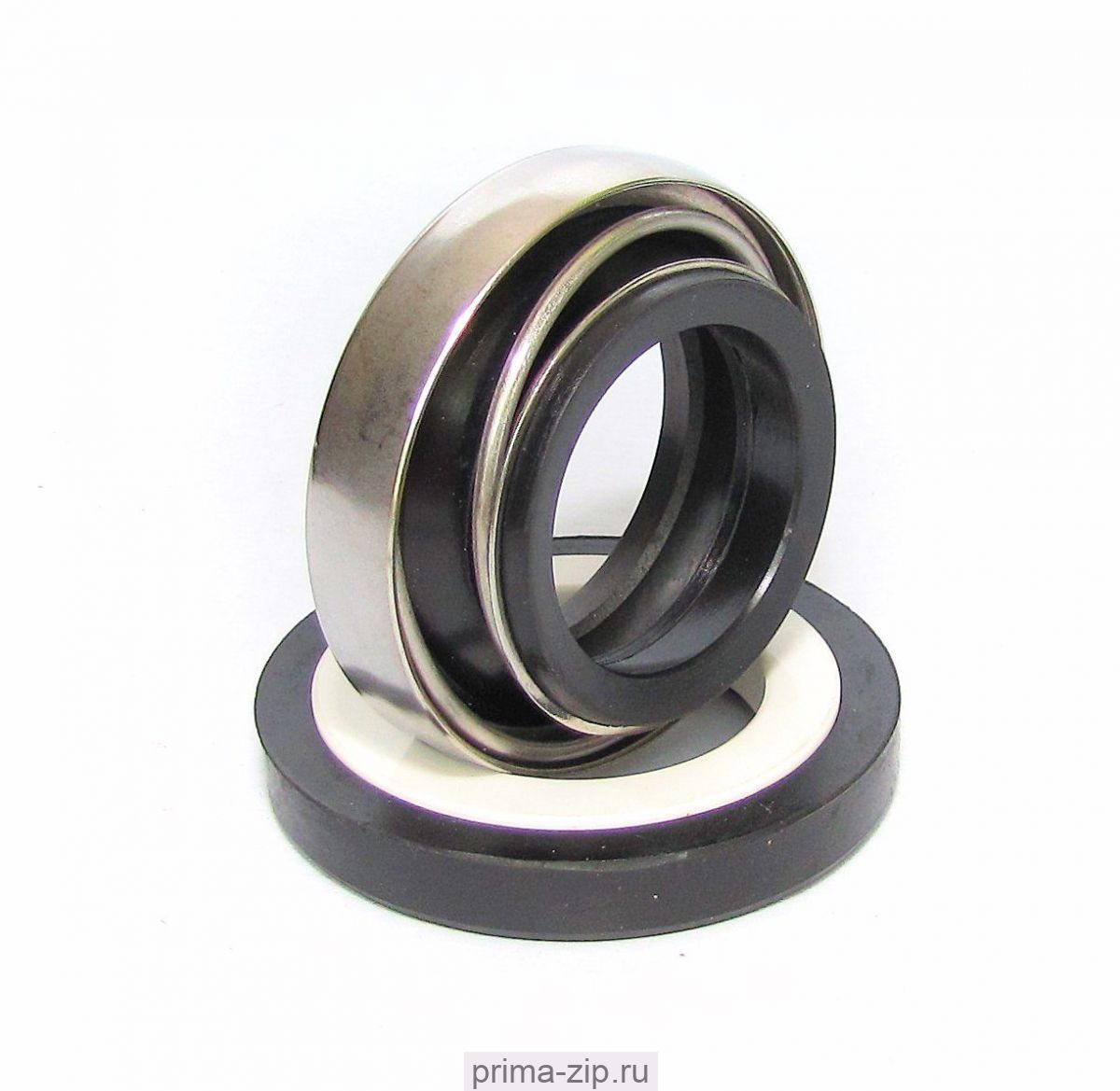

Торцевое уплотнение 301-50
Описание Торцевое уплотнение 301-50
BS 301
Торцевое уплотнение 301 (bt-ar)
|
Рабочие условия
|
|
| Температура | -20℃~150℃ |
| Давление | ≤0,5 мПа |
| Скорость | ≤10 м/сек |
| Материалы | Неподвижное кольцо: Ceramic/SIC/TC Вращающееся кольцо: Carbon/SIC/TC Сильфон: NBR/EPDM/VITON Металлические части: SS304/SS316 |
Таблица размеров
| Модель | d1 | d3 | d2 | L1 | L2 |
| BS301-6 | 6 | 18 | 18 | 14 | 4 |
| BS301-8S | 8 | 18 | 22 | 15 | 4 |
| BS301-8M | 8 | 20 | 26 | 15 | 5,5 |
| BS301-8L | 8 | 24 | 26 | 15 | 5,5 |
| BS301-10 | 10 | 24 | 26 | 21 | 8 |
| BS301-11 | 11 | 24 | 26 | 21 | 8 |
| BS301-12 | 12 | 24 | 26 | 21 | 8 |
| BS301-13 | 13 | 24 | 26 | 19,5 | 8 |
| BS301-13L | 13 | 28 | 28 | 21 | 8 |
| BS301-13H | 13 | 32 | 29,5 | 30,5 | 8 |
| BS301-14 | 14 | 28 | 28,5 | 21 | 8 |
| BS301-14L | 14 | 32 | 29,5 | 21 | 8 |
| BS301-15S | 15 | 39 | 30 | 21 | 8 |
| BS301-15M | 15 | 28 | 29,5 | 21 | 8 |
| BS301-15L | 15 | 32 | 38 | 21 | 8 |
| BS301-16S | 16 | 39 | 30 | 21 | 8 |
| BS301-16M | 16 | 32 | 29,5 | 21 | 8 |
| BS301-16L | 16 | 39 | 38 | 21 | 8 |
| BS301-16H | 16 | 32 | 30 | 31 | 10 |
| BS301-17 | 17 | 39 | 42 | 21 | 8 |
| BS301-18 | 18 | 39 | 42 | 21 | 8 |
| BS301-19 | 19 | 39 | 42 | 21 | 8 |
| BS301-20S | 20 | 39 | 42 | 21 | 8 |
| BS301-20L | 20 | 42 | 45 | 23 | 10 |
| BS301-22L | 22 | 42 | 45 | 23 | 10 |
| BS301-22S | 22 | 36 | 45 | 26,5 | 10 |
| BS301-23 | 23 | 47 | 50 | 23,5 | 10 |
| BS301-24 | 24 | 47 | 50 | 23,5 | 10 |
| BS301-25 | 25 | 42 | 50 | 23,5 | 10 |
| BS301-25L | 25 | 47 | 50 | 23,5 | 10 |
| BS301-26 | 26 | 47 | 50 | 23,5 | 10 |
| BS301-27 | 27 | 47 | 50 | 23,5 | 10 |
| BS301-28 | 28 | 54 | 57 | 25 | 10 |
| BS301-30 | 30 | 54 | 57 | 25 | 1 |
| BS301-32 | 32 | 54 | 57 | 25 | 10 |
| BS301-35 | 35 | 60 | 63 | 26 | 10 |
| BS301-38 | 38 | 65 | 68 | 30 | 12 |
| BS301-40 | 40 | 65 | 68 | 30 | 12 |
| BS301-45 | 45 | 70 | 73 | 32 | 12 |
| BS301-50 | 50 | 85 | 88 | 38 | 15 |
| BS301-55 | 55 | 85 | 88 | 38 | 15 |
| BS301-60 | 60 | 105 | 110 | 45 | 15 |
Торцевое уплотнение BS 301
