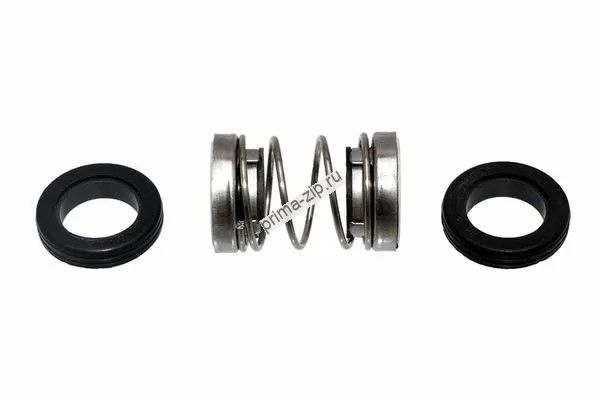

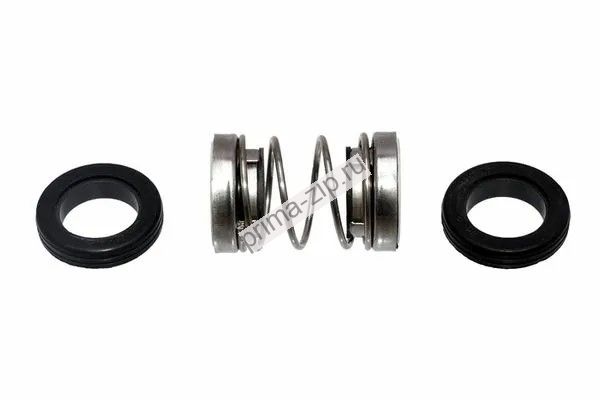

Торцевое уплотнение 208-40 SIC/SIC/SIC/SIC/NBR
Описание Торцевое уплотнение 208-40 SIC/SIC/SIC/SIC/NBR
Механическое, торцевое уплотнение типа 208 – это двойное торцевое уплотнение, которое используется при температурах от -20 до +180°С,с давлением до 0,5 мПа и частотой вращения до 3000 об/мин.
| Наименование | d1 | d3 (max) | d17 | L1 | L2 | Неподвижное кольцо: | Вращающееся кольцо: | Сильфон: |
| BS208-10 SIC/SIC/SIC/SIC/NBR | 10 | 21.0 | 21 | 30 | 5.3 | SIC | SIC | NBR |
| BS208-12 SIC/SIC/SIC/SIC/NBR | 12 | 23.0 | 23/24/26 | 32 | 5.3 | SIC | SIC | NBR |
| BS208-14 SIC/SIC/SIC/SIC/NBR | 14 | 25.5 | 25/26/28 | 35/38/42 | 5.3 | SIC | SIC | NBR |
| BS208-15 SIC/SIC/SIC/SIC/NBR | 15 | 27.5 | 27/28/30 | 38/45 | 5.3 | SIC | SIC | NBR |
| BS208-16 SIC/SIC/SIC/SIC/NBR | 16 | 27.6 | 27/28/30 | 38/48 | 5.3 | SIC | SIC | NBR |
| BS208-17 SIC/SIC/SIC/SIC/NBR | 17 | 32.5 | 33/34/35 | 38/43/48 | 5.3 | SIC | SIC | NBR |
| BS208-18 SIC/SIC/SIC/SIC/NBR | 18 | 32.5 | 33/34/35 | 38/43/48 | 5.3 | SIC | SIC | NBR |
| BS208-20 SIC/SIC/SIC/SIC/NBR | 20 | 33 | 35/36 | 40/42/47 | 5.8 | SIC | SIC | NBR |
| BS208-22 SIC/SIC/SIC/SIC/NBR | 22 | 38 | 37/38 | 45 | 6.2 | SIC | SIC | NBR |
| BS208-25 SIC/SIC/SIC/SIC/NBR | 25 | 40 | 40/41 | 48/51 | 7.5 | SIC | SIC | NBR |
| BS208-28 SIC/SIC/SIC/SIC/NBR | 28 | 43 | 43 | 51 | 8.0 | SIC | SIC | NBR |
| BS208-30 SIC/SIC/SIC/SIC/NBR | 30 | 45.5 | 45 | 51 | 8.0 | SIC | SIC | NBR |
| BS208-35 SIC/SIC/SIC/SIC/NBR | 35 | 51.0 | 50 | 51 | 8.0 | SIC | SIC | NBR |
| BS208-40 SIC/SIC/SIC/SIC/NBR | 40 | 57.6 | 58 | 61 | 9.5 | SIC | SIC | NBR |
| BS208-45 SIC/SIC/SIC/SIC/NBR | 45 | 63.0 | 63 | 61 | 9.5 | SIC | SIC | NBR |
Торцевое уплотнение 208-40 SIC/SIC/SIC/SIC/NBR
