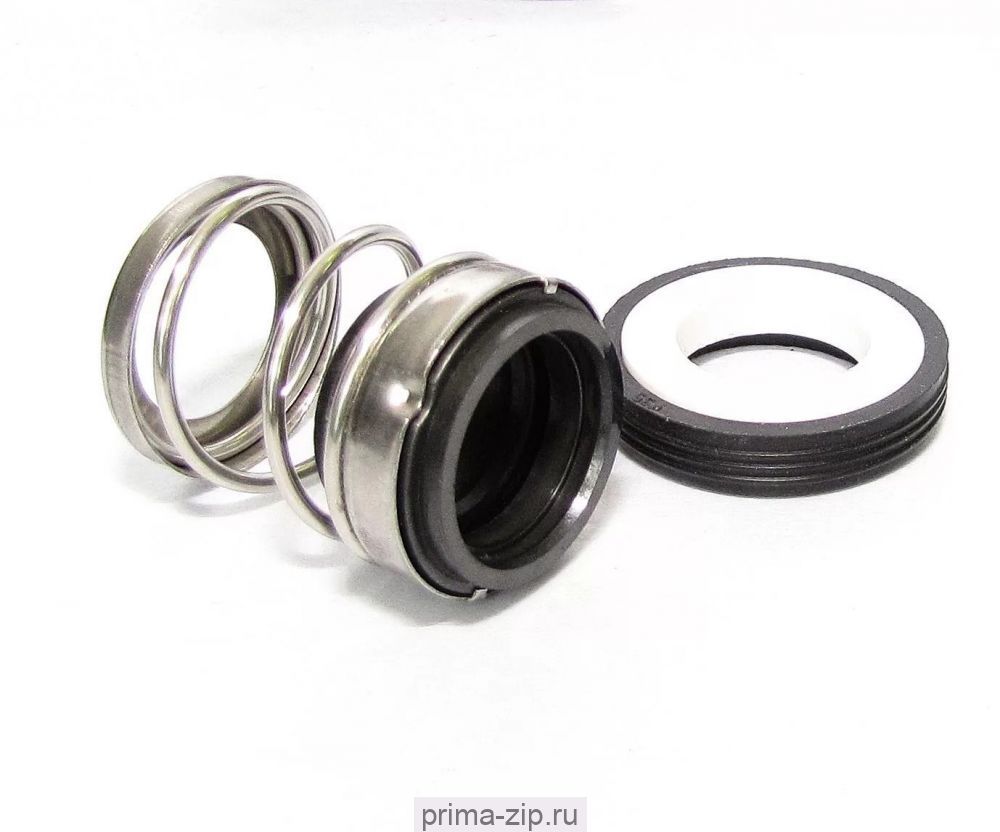

Торцевое уплотнение 560A-10 CAR/SIC/NBR
Описание Торцевое уплотнение 560A-10 CAR/SIC/NBR
Торцевое уплотнение 560А и 560D, предназначено для насосов перекачивающих воду, масло, слабые кислоты.
Рабочие условия |
|
Температура |
-20℃~150℃ |
Давление |
≤0,8 мПа |
Скорость |
≤10 м/сек |
Материалы |
Неподвижное кольцо: Ceramic/SIC/TC |
Model |
D1 |
D3 |
D2 |
L1 |
L2 |
560A-10 |
10 |
23.5 |
24 |
25 |
7 |
560A-11 |
11 |
23.5 |
24 |
25 |
7 |
560A-12 |
12 |
26 |
26 |
25 |
7 |
560A-14 |
14 |
28 |
28 |
25.5 |
7 |
560A-15 |
15 |
30 |
28 |
29.5 |
7 |
560A-16 |
16 |
32 |
32 |
33.5 |
10 |
560A-18 |
18 |
32.5 |
35 |
36.5 |
10 |
560A-19 |
19 |
32.5 |
35 |
36.5 |
10 |
560A-20 |
20 |
35.5 |
38 |
38 |
10 |
560A-22 |
22 |
37.5 |
40 |
40.3 |
10 |
560A-25 |
25 |
42 |
44 |
39.3 |
10 |
560A-28 |
28 |
45.5 |
46 |
40 |
10 |
560A-30S |
30 |
46 |
45 |
38.2 |
7.5 |
560A-30L |
30 |
48 |
50 |
40 |
10 |
560A-32 |
32 |
50 |
54 |
40 |
10 |
560A-35 |
35 |
54.5 |
58 |
42 |
10 |
560A-38 |
38 |
58.5 |
60 |
42.6 |
10 |
560A-40 |
40 |
62.5 |
64 |
42.6 |
10 |
560A-45 |
45 |
66.5 |
66 |
45 |
10 |
560A-50 |
50 |
72.5 |
72 |
54.6 |
10 |
560A-55S |
55 |
72 |
75 |
59.4 |
12 |
560A-55L |
55 |
76 |
78 |
59.4 |
12 |
560A-60 |
60 |
80 |
80 |
63 |
12 |
560A-65 |
65 |
85 |
85 |
64 |
13 |
560A-70 |
70 |
92 |
92 |
60 |
11 |
560A-3/8* |
9.525 |
23.5 |
22.225 |
28.6 |
6.4 |
560A-1/2* |
12.7 |
26 |
25.4 |
28.6 |
6.4 |
560A-5/8* |
15.875 |
30 |
31.75 |
32.5 |
8.7 |
560A-3/4* |
19.05 |
32.5 |
34.925 |
32.5 |
8.7 |
560A-7/8* |
22.225 |
37.5 |
38.1 |
34.1 |
8.7 |
560A-1* |
25.4 |
44 |
41.275 |
36.5 |
9.5 |
560A-1 1/8* |
28.575 |
48 |
44.45 |
38.1 |
9.5 |
560A-1 1/4* |
31.75 |
50 |
47.625 |
38.1 |
9.5 |
560A-1 3/8* |
34.925 |
54.5 |
50.8 |
39.7 |
9.5 |
560A-1 1/2* |
38.1 |
58.5 |
53.975 |
39.7 |
9.5 |
560A-1 5/8* |
41.275 |
64 |
60.325 |
47.6 |
11.1 |
560A-1 3/4* |
44.45 |
67 |
63.5 |
47.6 |
11.1 |
560A-1 7/8* |
47.625 |
71 |
66.675 |
50.8 |
11.1 |
560A-2* |
50.8 |
73.5 |
69.85 |
50.8 |
11.1 |
560A-2 1/4* |
57.15 |
78.4 |
79.38 |
57.16 |
13.5 |
560A-2 1/2* |
63.5 |
84.9 |
85.73 |
60.3 |
13.5 |
560A-2 5/8* |
66.785 |
88.4 |
85.73 |
65.1 |
15.9 |
560A-2 3/4* |
69.85 |
92.6 |
88.9 |
65.1 |
15.9 |
560A-2 7/8* |
73.025 |
94.9 |
95.25 |
68.27 |
15.9 |
560A-3* |
76.2 |
101.9 |
98.43 |
68.27 |
15.9 |
