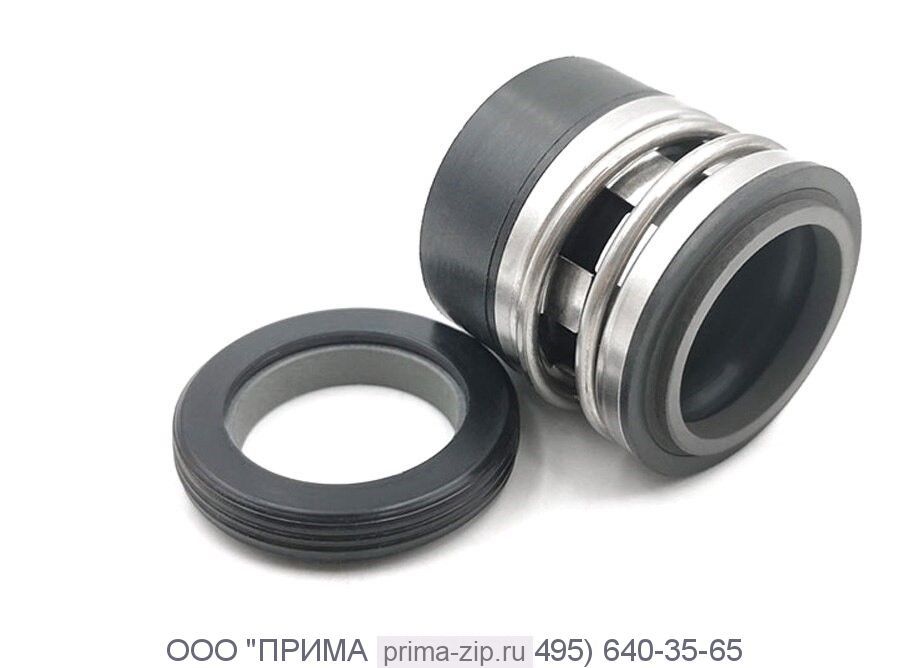

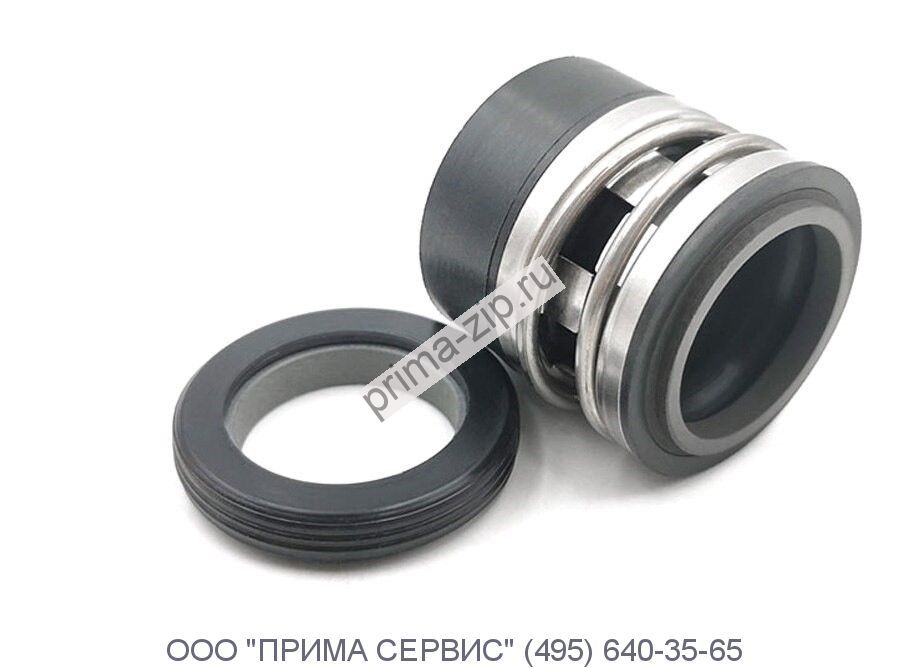

Торцевое уплотнение 2100-30 CAR/SIC/VITON/ L4
Описание Торцевое уплотнение 2100-30 CAR/SIC/VITON/ L4
Рабочие условия |
|
Температура |
-40℃~150℃ |
Давление |
≤1,2 мПа |
Скорость |
≤13 м/сек |
Материалы |
Неподвижное кольцо:Ceramic/SIC/TC |
МОДЕЛЬ |
d1 |
d3 |
d2 |
L1 |
L2 |
L3 |
L4 |
2100-10 |
10 |
20 |
21 |
5 |
15,2 |
27,7 |
35,2 |
2100-12 |
12 |
22 |
23 |
6 |
15,2 |
26,7 |
34,2 |
2100-14 |
14 |
24 |
25 |
6 |
15,2 |
29,2 |
34,2 |
2100-15 |
15 |
25 |
26 |
6 |
15,2 |
29,2 |
34,2 |
2100-16 |
16 |
26 |
27 |
6 |
15.2 |
29,2 |
34,2 |
2100-18 |
18 |
32 |
33 |
6 |
20.2 |
31.7 |
39.2 |
2100-20 |
20 |
34 |
35 |
6 |
20,2 |
31,7 |
39.2 |
2100-22 |
22 |
36 |
37 |
6 |
20,2 |
31,7 |
39.2 |
2100-24 |
24 |
38 |
39 |
6 |
20,2 |
34.2 |
44.2 |
2100-25 |
25 |
39 |
40 |
6 |
20,2 |
34.2 |
44.2 |
2100-28 |
28 |
42 |
43 |
6 |
26,2 |
36.7 |
44.2 |
2100-30 |
30 |
44 |
45 |
7 |
26.2 |
35.7 |
43.2 |
2100-32 |
32 |
46 |
48 |
7 |
26.2 |
35.7 |
48.2 |
2100-33 |
33 |
47 |
48 |
7 |
26.2 |
35.7 |
48.2 |
2100-35 |
35 |
49 |
50 |
8 |
26.2 |
34.7 |
47.2 |
2100-38 |
38 |
54 |
56 |
8 |
30.2 |
37.2 |
47.2 |
2100-40 |
40 |
56 |
58 |
8 |
30.2 |
37.2 |
47.2 |
2100-43 |
43 |
59 |
61 |
8 |
30.2 |
37.2 |
52.2 |
2100-45 |
45 |
61 |
63 |
8 |
30.2 |
37.2 |
52.2 |
2100-48 |
48 |
64 |
66 |
10 |
30.2 |
35.2 |
50.2 |
2100-50 |
50 |
66 |
70 |
10 |
30.2 |
37.7 |
50.2 |
2100-53 |
53 |
69 |
73 |
10 |
30.2 |
37.7 |
60.2 |
2100-55 |
55 |
71 |
75 |
10 |
30.2 |
37.7 |
60.2 |
2100-58 |
58 |
78 |
78 |
10 |
33.2 |
42.7 |
60.2 |
2100-60 |
60 |
80 |
80 |
12 |
33.2 |
40.7 |
58.2 |
2100-63 |
63 |
83 |
83 |
12 |
33.2 |
40.7 |
58.2 |
2100-65 |
65 |
85 |
85 |
12 |
33.2 |
40.7 |
68.2 |
2100-68 |
68 |
88 |
90 |
12 |
33.2 |
40.7 |
68.2 |
2100-70 |
70 |
90 |
92 |
12 |
33.2 |
48.2 |
68.2 |
2100-75 |
75 |
99 |
97 |
12 |
40.2 |
48.2 |
68.2 |
2100-80 |
80 |
104 |
105 |
14 |
40.2 |
47.7 |
77.7 |
2100-85 |
85 |
109 |
110 |
14 |
40.2 |
47.7 |
77.7 |
2100-90 |
90 |
114 |
115 |
14 |
40.2 |
52.7 |
77.7 |
2100-95 |
95 |
119 |
120 |
14 |
40.2 |
52.7 |
77.7 |
2100-100 |
100 |
124 |
125 |
14 |
40.2 |
52.7 |
77.7 |
